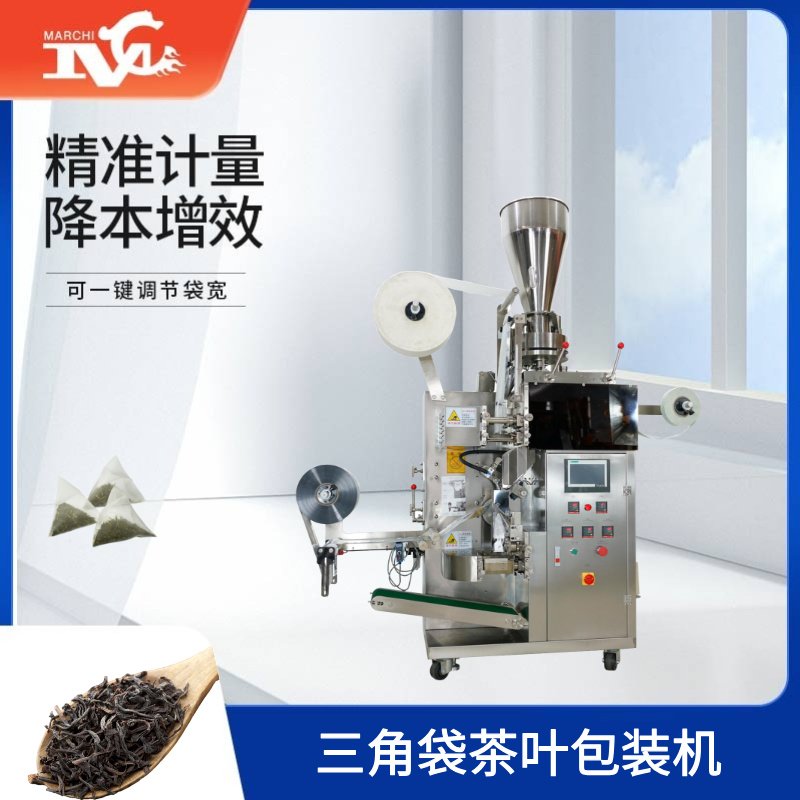

三角袋茶葉包裝機

可包裝：

龍井、碧螺春、鐵觀音、大紅袍、普洱、祁門紅茶、正山小種、白毫銀針、茉莉花茶、桂花烏龍、蜜桃烏龍、荔枝紅茶、陳皮普洱、玫瑰花、菊花、檸檬片、薄荷葉、苦蕎茶、大麥茶、玉米須茶等。

產品介紹：

設備優勢：高精度、高性價比、運行穩定、操作簡單、降本增效、提高產能

設備介紹：

1、適用於茶葉、藥茶、保健茶草根類等小顆粒物的內外袋一次性包裝。

2、內、外袋拉膜由步進電機控製，袋長穩定、定位準確。

3、采用PID調節溫度控製器，溫度控製得更準確。

4、采用PLC控製整機的動作，人機界麵顯示，保證產品的衛生可靠。

5、包裝材料：茶葉濾紙、棉線、複合膜及標簽。

設備參數：

計量範圍：3 - 10 g（ 1.6 ~ 26 ml ）

內袋尺寸：長:50 - 70mm 寬:45 - 80 mm

外袋尺寸：長:80 - 120mm 寬:75 - 95 mm

包裝速度：30-40 包/分鍾

外型尺寸：1750*740*1950mm

整機重量：550 kg

總 功 率：AC220V/ 50Hz /3.7kw

氣源：≥0.4m³/min

Packaging Available:

Longjing, Biluochun, Tieguanyin, Dahongpao, Pu'er, Keemun Black Tea, Zhengshan Xiaozhong, Baihao Yinzhen, Jasmine Tea, Osmanthus Oolong, Peach Oolong, Lychee Black Tea, Chenpi Pu'er, Rose Flower, Chrysanthemum, Lemon Slices, Mint Leaves, Buckwheat Tea, Barley Tea, Corn Silk Tea, etc.

Equipment Advantages:

High precision、Cost-effective、Stable operation、Easy to operate、Reduces costs and increases efficiency、Improves production capacity

Equipment Description:

Suitable for one-time packaging of small particles such as tea, herbal tea, and health tea.

The inner and outer bag film pulling is controlled by a stepper motor, ensuring stable bag length and accurate positioning.

Utilizes a PID temperature controller for more accurate temperature control.

PLC controls the machine's actions, with a human-machine interface display to ensure product hygiene and reliability.

Packaging materials: tea filter paper, cotton thread, composite film, and labels.

Equipment Parameters:

Measurement Range: 3 - 10 g (1.6 ~ 26 ml)

Inner Bag Size: Length: 50 - 70 mm, Width: 45 - 80 mm

Outer Bag Size: Length: 80 - 120 mm, Width: 75 - 95 mm

Packaging Speed: 30-40 bags/min

Dimensions: 17507401950 mm

Machine Weight: 550 kg

Total Power: AC220V/50Hz/3.7 kW

Air Supply: ≥0.4 m³/min
