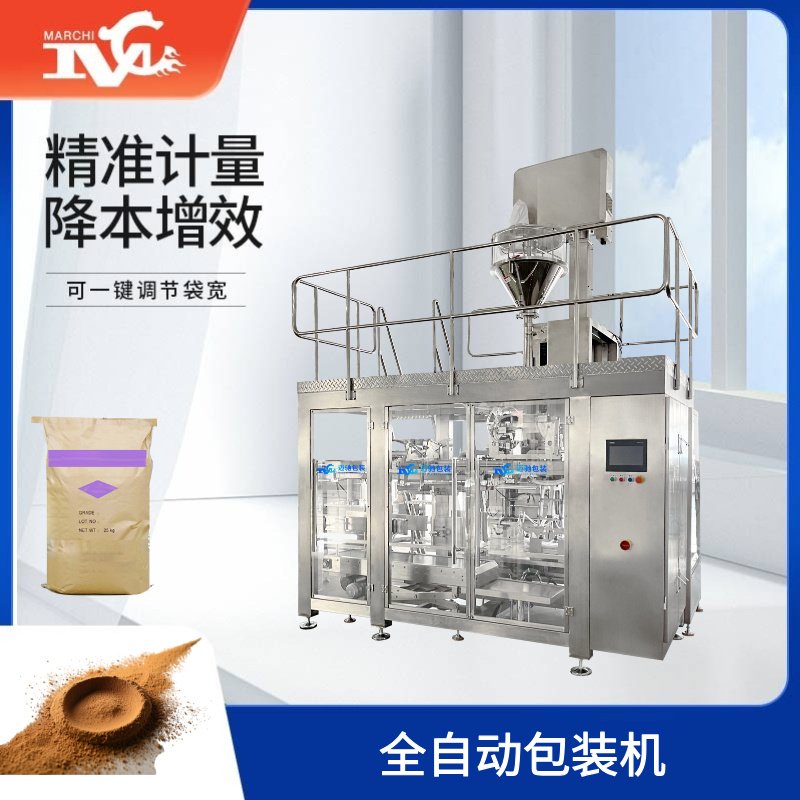

全自動包裝機

可包裝：

澱粉、糖粉、預拌粉、辣椒粉、植脂末、孜然粉、五穀粉、生粉、薯粉、酵素粉、甜椒粉、椰粉、代餐粉、芝麻粉、調味粉、奶茶粉、豆漿粉、泡打粉，速溶飲料，吉士粉，香草粉、藕粉、調味品等。

設備簡介：

適合重量較大的物料包裝，穩定性強，適應高負荷工作環境。

1.自動包裝機，可實現自動計量，自動上袋、自動充填、自動熱合縫包一體等一係列工作，不需要人工操作。節省人力資源，降低長期成本投入。也可與其它配套設備完成整條流水線作業。

2.稱量機采用立式螺杆給料，由單螺杆構成。螺杆由伺服電機直接驅動保證計量的速度和精度。工作時，螺杆根據控製信號旋轉供料；稱重傳感器和稱重控製器進行稱重信號的處理,並輸出重量數據顯示及控製信號。

3.本機組由備袋庫、取袋理袋裝置、上袋機械手、夾袋下料裝置、抱袋推動裝置、袋口導向裝置、真空係統及控製係統等組成；采用從備袋庫取袋，袋子對中定位，袋子往前送，袋口定位，預開袋，上袋機械手插刀插入袋口，同時兩側氣抓夾住袋口兩側，最後上袋。

設備參數：

設備型號：MCZD-25F

給料方式：單螺旋給料

包裝重量(千克)：5～25

包裝精度：≤±0.1～0.2%

包裝速度(包/分)：1.5～2

袋子尺寸(毫米)：L:500～1000

袋子材質：牛皮紙複膜袋、編織袋、塑料袋、編織袋等

Packaging Available:

Starch, powdered sugar, premixes, chili powder, non-dairy creamer, cumin powder, multigrain powder, raw starch, potato powder, enzyme powder, sweet pepper powder, coconut powder, meal replacement powder, sesame powder, seasoning powder, milk tea powder, soy milk powder, baking powder, instant beverages, custard powder, vanilla powder, lotus root powder, and various seasonings.

Equipment Introduction:

Suitable for packaging heavier materials, with strong stability, and adaptable to high-load working environments.

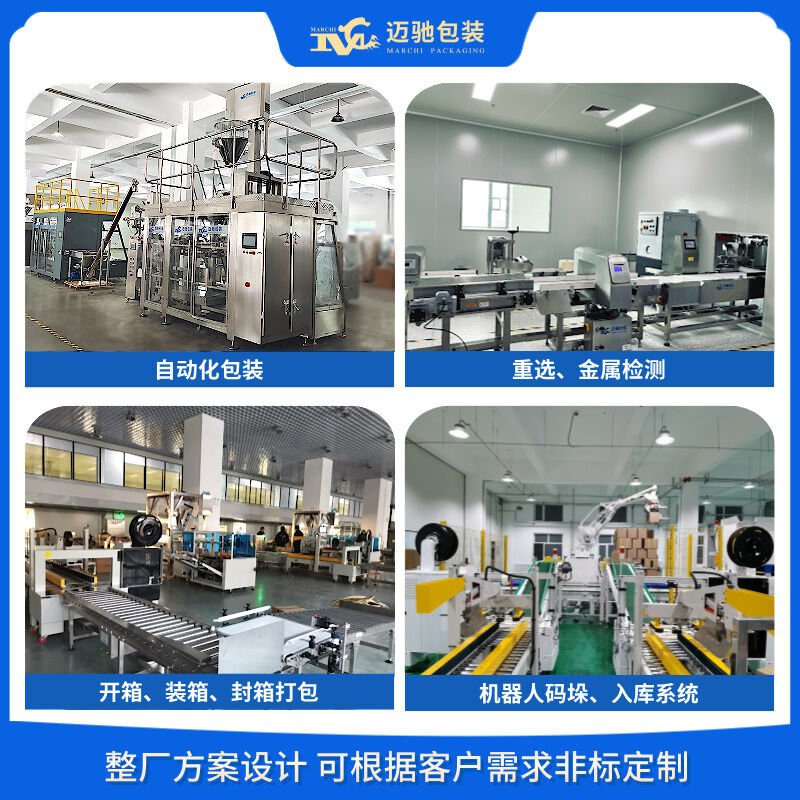

1、Automatic packaging machine that can achieve automatic measurement, automatic bagging, automatic filling, and automatic heat sealing, all without manual operation. Saves human resources and reduces long-term cost investment. It can also work with other auxiliary equipment to complete a full production line operation.

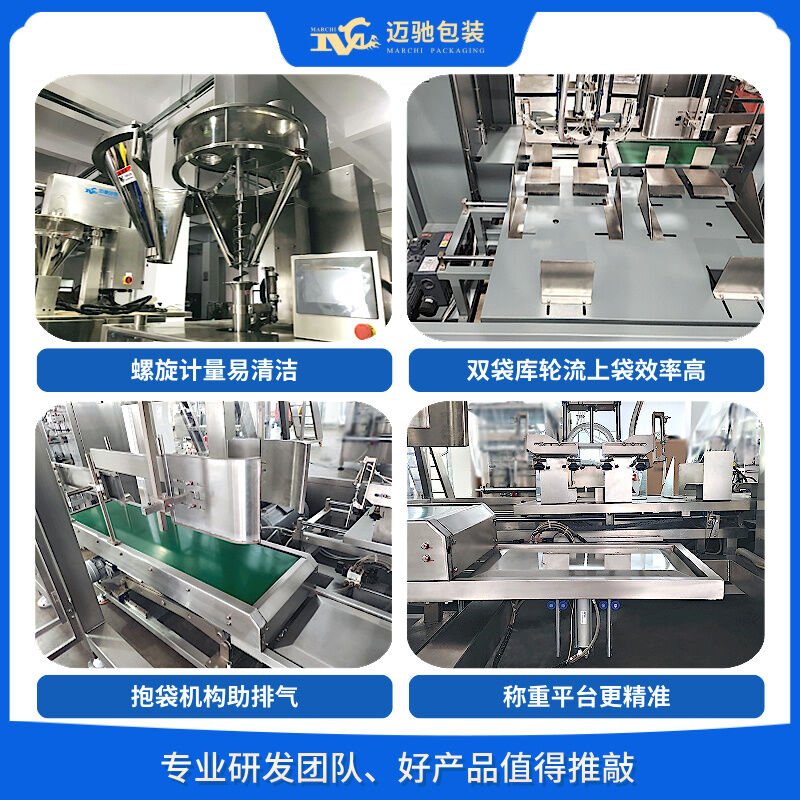

2、The weighing machine uses vertical screw feeding, consisting of a single screw. The screw is directly driven by a servo motor to ensure the speed and accuracy of measurement. During operation, the screw rotates to feed according to control signals; the weighing sensor and weighing controller process the weighing signals and output weight display and control signals.

3、This machine set consists of a bag storage library, bag picking and arranging device, bagging robotic arm, bag-clamping discharging device, bag-holding pushing device, bag mouth guiding device, vacuum system, and control system; it uses bag extraction from the bag storage library, bag centering and positioning, forward bag feeding, bag mouth positioning, pre-opening the bag, and the bagging robotic arm inserting a knife into the bag mouth, while both sides use air grippers to hold the sides of the bag mouth, and finally bagging.

Equipment Parameters:

Model: MCZD-25F

Feeding Method: Single screw feeding

Packaging Weight (kg): 5–25

Packaging Accuracy: ≤±0.1–0.2%

Packaging Speed (bags/min): 1.5–2

Bag Size (mm): L: 500–1000

Bag Material: Kraft paper laminated bags, woven bags, plastic bags, woven bags, etc.
